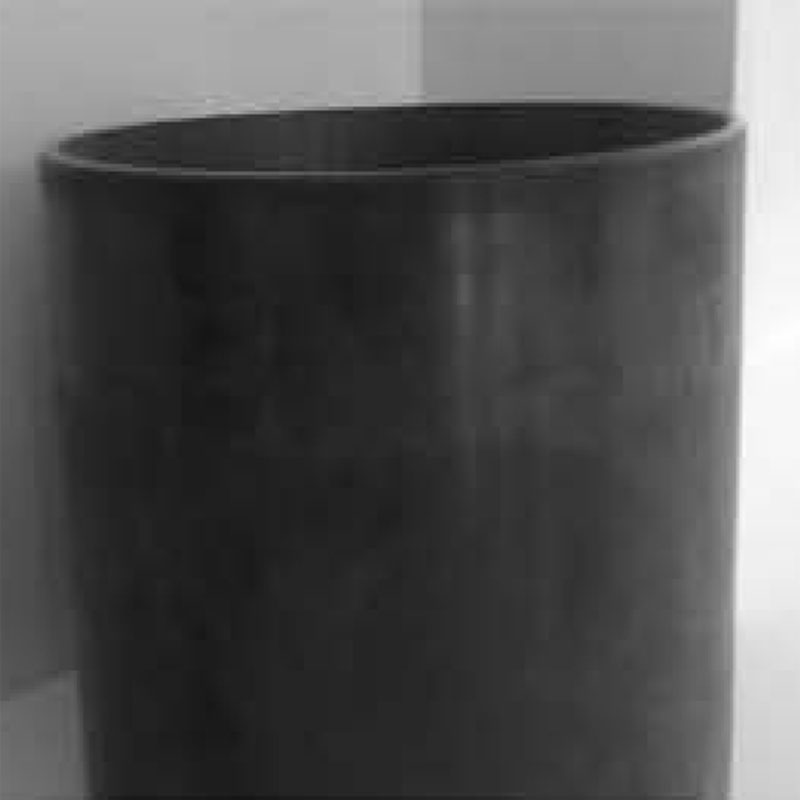

Silicon Nitride Ceramic Crucible
Silicon Nitride Ceramic Crucible
Product introduction
1.Silicon nitride ceramic crucible has super hardness and lubricity, so it is very wear-resistant.
2.Almost no reaction with inorganic acid, strong corrosion resistance.
3.resist the influence of cold and heat, and it will not break in the rapid cold and hot environment.
Main Technologies and Parameters of I-TOWU Silicon Nitride Ceramics
| Density g/cm³ | relative density(%) | modulus of elasticty GPa | Crushing load ratio (%) | Hardness(HV) GPa |
| 3.20±0.05 | >99.5 | 300-320 | ≥40 | ≥14.2 |
| Breaking tencity Mpa.M | three-point bending strength Mpa | Poisson ratio | Coefficient of linear expansion | Weibull modulus strength Mpa |
| 6.0-7.0 | ≥820 | 0.25 | 3.0-3.2 | 10-12 |
| Thermal conductivity w/(M-K) | Specific resistivity(cm) | Acid and comosion Resistance | dimensional stablity | Magnetic |
| 15-20 | 10(18方) | excellent | excellent | NONE |
*Main technology: Cold isostatic pressing(CIP) molding air pressure(GPS) sintering
